| Brand Name : | FLRT |
| Model Number : | 9 5/8 FA437GT |
| Certification : | API-7-1 , ISO 9001:2008 |
| Supply Ability : | 200pcs per quarter |
| Delivery Time : | 5~45 workdays |

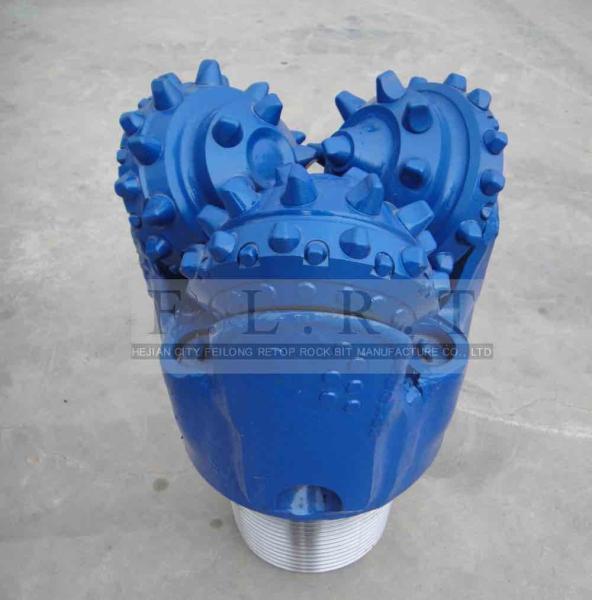

9 5/8" FA437GT , Tricone Roller Bit , TCI Drill Bit , Oil Well Drill Bit
PRODUCT SPECIFICATIONGS
Bit Size : 9 5/8 inch ( 244.5 mm )
IADC : 4 3 7
SERIES: FA
Tooth type : ( TCI ) Tungsten Carbide Insert
Connection : 6 5/8 inch API REG PIN
Nozzle : Three jet (side) nozzles,
Bit Weight: 67 kgs
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 117 | 127 | 437 447 | 517 527 | 537 547 | 617 627 | 637 | |
| WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
| Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
| Rotation Speed (Rpm) | 240~80 | 240~70 | 180~80 | 220~60 | 220~50 | 200~50 | 180~40 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
|
|
