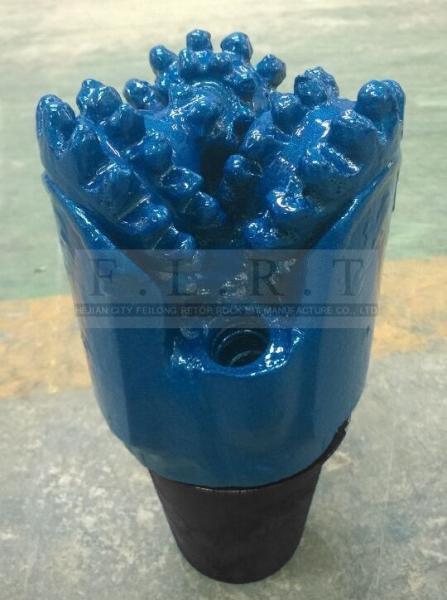

4 5/8" FSA216 , Steel Tooth Tricone Bit , Sealed FrictionBearing ,TRC Bit, Deep Section Well Drilling

PRODUCT SPECIFICATIONS

Bit Size: 4 5/8 inch ( 117.5 mm)

IADC: 216

SERIES: FA

Tooth type: Milled Tooth / Steel Tooth

Connection: 2 7/8 inch API REG PIN

Nozzle: three jet(side) nozzles

Bit Weight: 7 kgs

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Rock bit classifications
- IADC prepared a comparison chart, in 1972
- Each bit is design by three code system
- First code classifies the cutting structure, 1-3 for teeth soft, medium and hard, 5-8 for insert, soft medium hard semi abrasive, extremely hard and abrasive, 4 for future
- Soft rock require long, slim and widely spaced teeth
- Medium requires short and less widely teeth
- Hard requires very short and closely spaced teeth
- Code 2 relates to formation hardness with division from 1to 4 from softest to hardest
- Code 3 for mechanical features of the bit, sealed non-sealed etc
- Major bit companies are Hughes, Security, Reed, and Smith
- Each company give there tables with IADC specifications

Hejian City Feilong Retop Rock Bit Manufacture Co., Ltd. is established in 1992 and located in Hebei Province, China. Integrated with Beijing Feilong International Trade Co., Ltd. and Beijing Superior Drilling Equipment Co., Ltd. , the company has involved into a comprehensive enterprise integrating production, R&D and distribution of tricone bits, PDC bits, trenchless and rotary drilling tools.

The company serves the customers in oil & gas drilling, mining, exploration, HDD drilling and rotary drilling with covering a complete product line.

The company covers an area of 36,000 square meter and has more than 200 employees, including more than 100 technicians. The company has equipped with contemporary advanced processing equipment of processing and detecting and testing instruments. The company has obtained the certification of the quality system: ISO 9001, ISO 14001, OHSAS 18001 and mostly important API 7-1.

The company’s annual production of various drilling tools is over 10,000 sets, which exported to over 20 countries and regions. We, FeiLong ReTop ( FLRT ) are willing to cooperate with friends at home and abroad to make joint development and contribute to global energy development and urban infrastructure development.
